This is plug type accessories,also named Separable Connectors.It includes separable Elbow,straight and Tee connector kits.Our separable connectors are widely used in switchgears,transformers,cabinets and other electrical equipments.It is made of EPDM or silicone rubber with integrated field control.And adopts advanced triple-layer( a conductive inner layer,an insulation layer and a conductive outer layer) injection technique to guarantee the interface property to avoid gaps between layers and decrease partial discharge maximally.Our separable connectors are mainly includes IEC type & IEEE type.
- EN 50181 Plug-in type bushings above 1kV up to 52kV and from 250A to 2.5kA for equipment other than liquid filled transformers.
- EN 50180 Bushings above 1kV up to 36kV and from 250A to 3.15kA for liquid filled transformers.
- HD629.1 Test requirements on accessories for used on power cables of rated voltage from 3.6/6(7.2)kV up to 20.8/36(42)kV-Part 1:cables with extruded insulation.
- IEC 60502.4 Power cable with extruded insulation and their accessories for rated voltages from 1kV(U=1.2kV)up to 30kV(U=36kV)-part 4:test requirements on accessories for cable with rated voltages from 6kV up to 30kV(U=36kV.
- lEc60099 Metal oxide surge arresters without gaps for A.C.systems.
- JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for A.C.systems.
- IEEE 386 Separable insulated connector system for power distribution system above 600V.
- GB11032 Metal oxide surge arresters without gaps for A.C.system.
- JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for A.C.systems

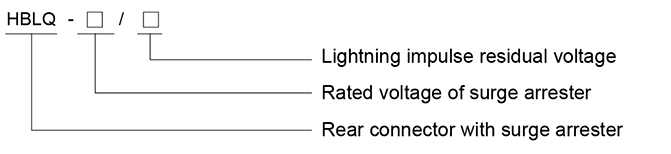

Type:

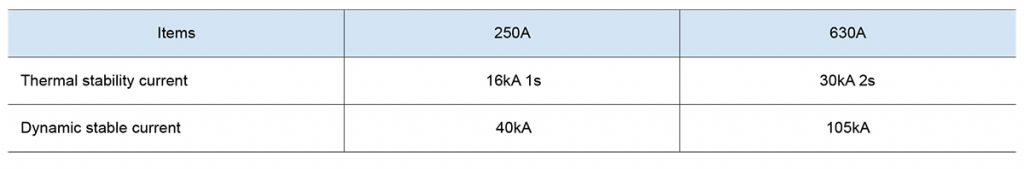

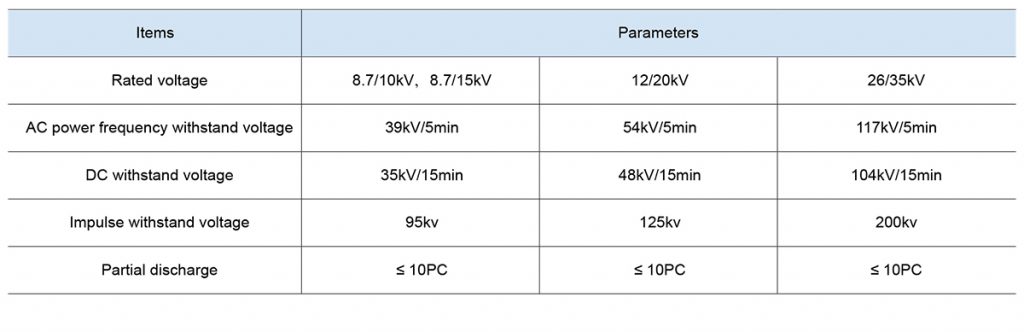

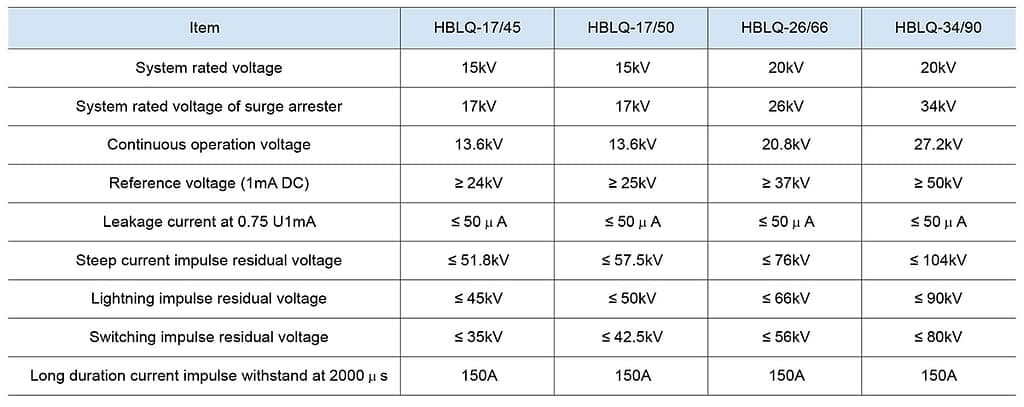

Parameters:
Application:

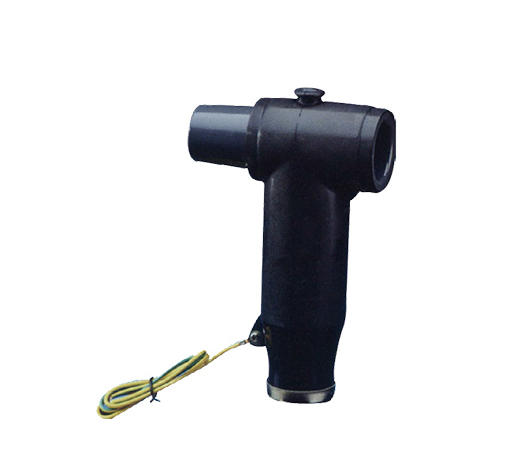

15kv/20kv IEC Rear Connector with Surge Arrester Cable Accessories
This type IEC standard rear connector with surge arrester can provide reliable over-voltage protection for the electrical system. The external semi conductive Layers of screened type IEC Rear connector with surge arrester to ensure protect the operators when installation and maintenance,and also ensure the equipments in safety.At the same time, its anti ultraviolet, anti-aging, waterproof, moisture-proof unique properties to ensure that the product in a harsh environment safe and reliable operation.
