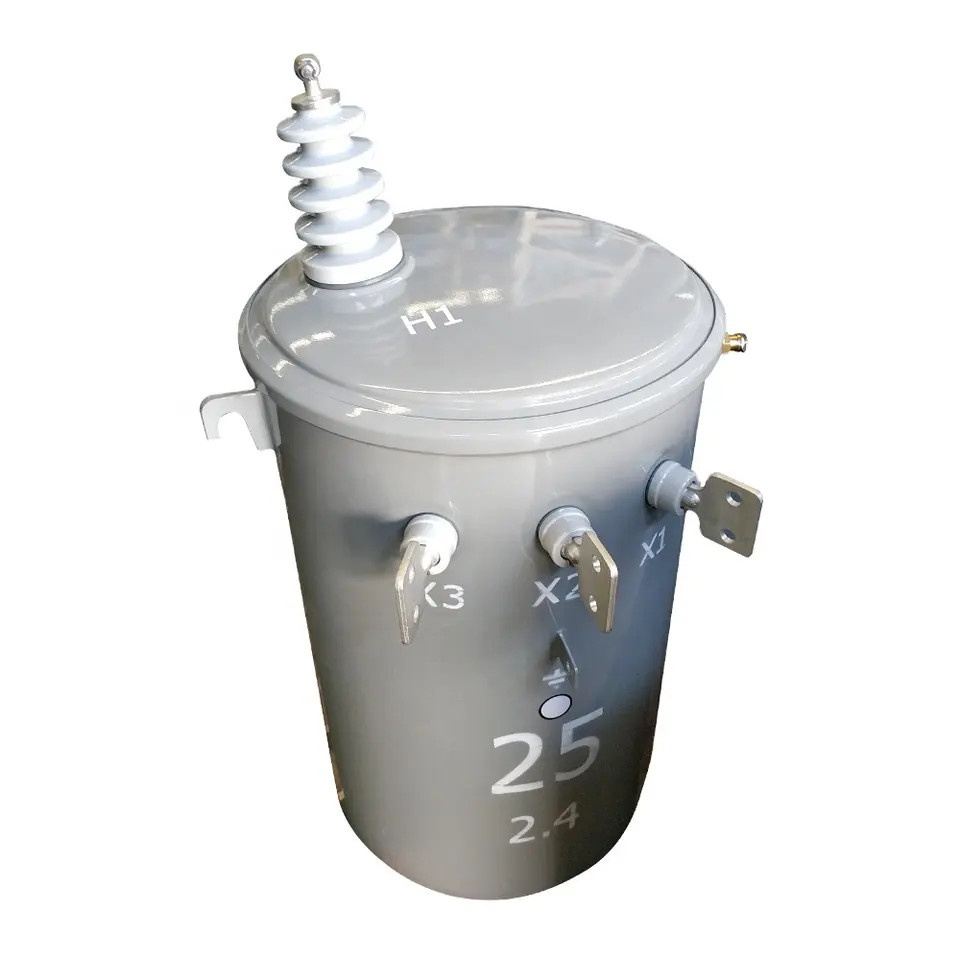

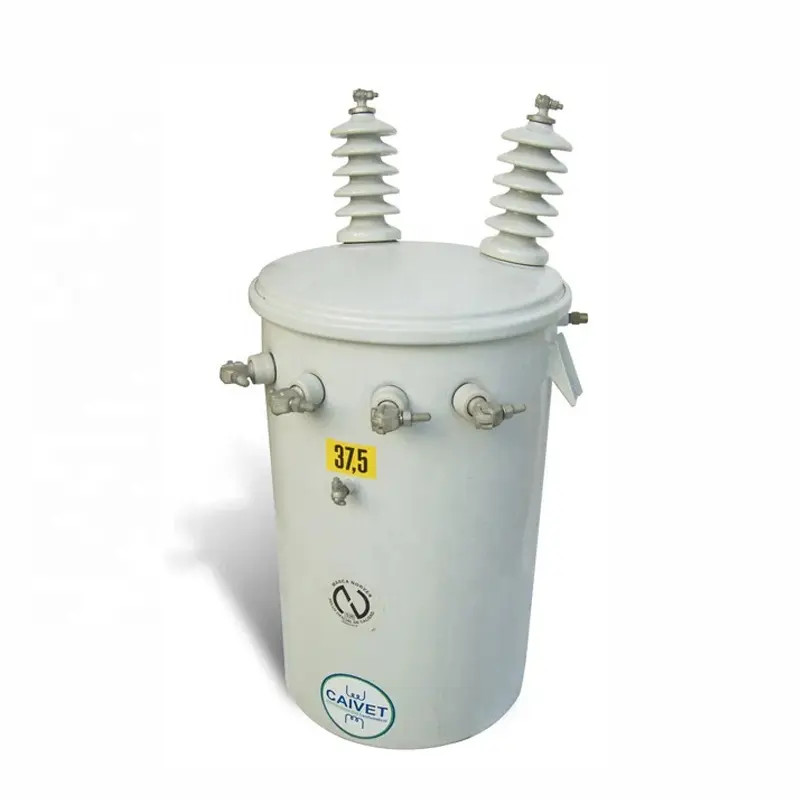

Model: D11, D15 Single pole mounted transformer
Rated voltage:12.47/7.2KV/13.2KV/13.8/24.9KV
Frequency: 50Hz/60Hz
Coil Number: 2
Coil Structure: TOROIDAL
Phase: Single
Output Voltage: 0.12-0.24KV
Tap Changer: NLTC
Standards: IEC/ANSI/DOE/CSA

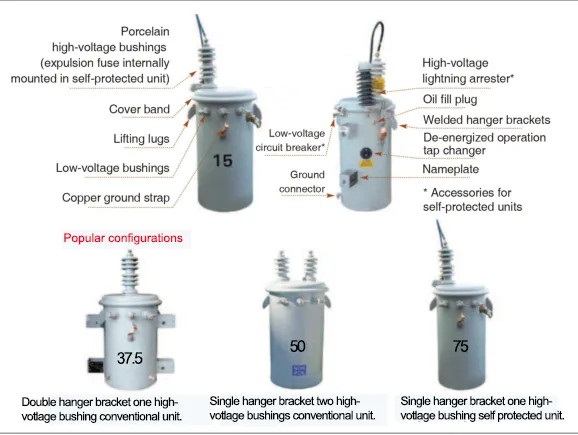

Features:
- CRGO Slicon Steel Metal Core or Amorphous Metal Core, Copper or Aluminum Winding.
- Cylinder sealing structure
- One or two high voltage bushing on the cover
- Low voltage bushing on the wall of the tank, eyebolt, and connecting terminals
- Main Accessories include CSP type Circiut Breaker, Fuse, and Surge Arrester.

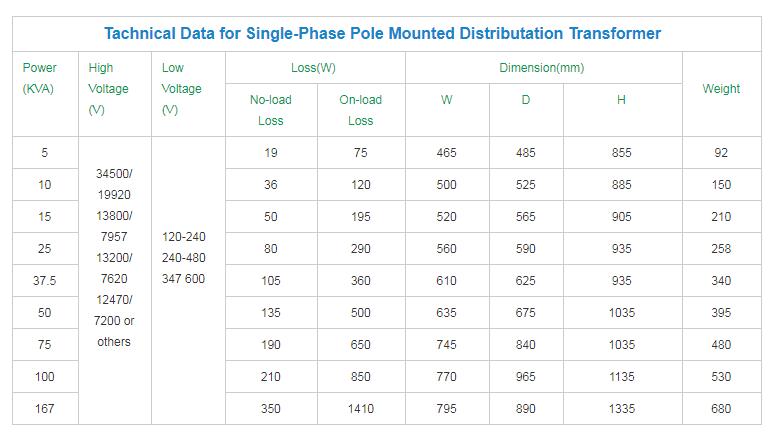

Parameters:
