Metal oxide lightning HV MV surge arrester is a device to protect electrical equipment from over-voltage transients caused by external (lightning) or internal (switching) events. Also called a surge protection device (SPD) or transient voltage surge suppressor (TVSS), thisclass of device is used to protect equipment in power transmission and distribution systems. (For consumer equipment protection, different products called surge protectors are used.) The energy criterion for various insulation material can be compared by impulse ratio, the surge arrester should have a low impulse ratio, so that a surge incident on the surge arrester may be bypassed, to the ground instead of passing through the apparatus.

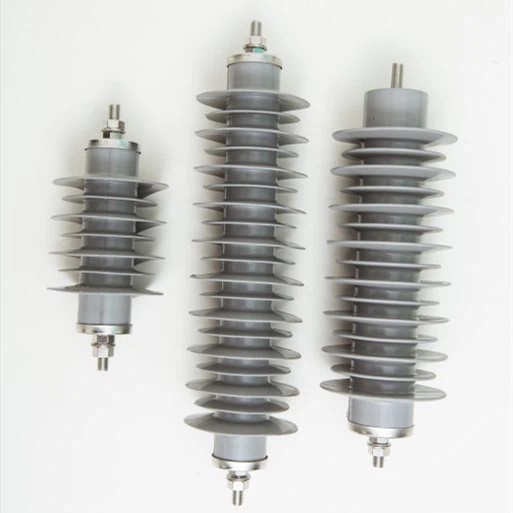

Product name: 10kV 10kA polymer metal oxide lightning HV MV surge arrester
Type: YH10W-10

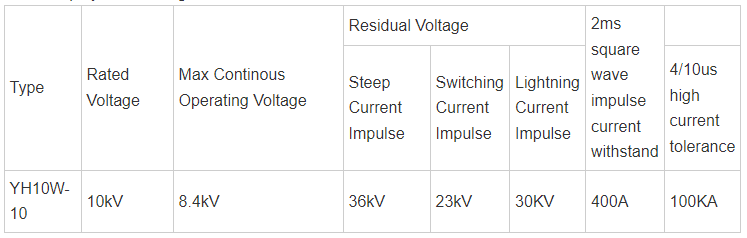

Specifications:
Features:
the Mv Lighning Arrester is designed to protect electrical systems from unexpected voltage surges, which can cause lasting damage and financial losses. These surges may result from lightning strikes, power outages or any other source of electrical disturbance.
So the Mv Surge Arrester is an innovative and reliable solution for protecting electrical systems from voltage surges. Its versatility, durability, and energy efficiency make it an ideal choice for businesses and organizations seeking to minimize the risk of electrical damage and ensure the safety of personnel and equipment. We are confident that our Mv Surge Arrester will exceed your expectations and provide you with the peace of mind you deserve.
Applications:
- Economical and advantages protection.
- High bearing capacity and long-term stable operation.
- Excellent anti-fouling properties for coastal and desert areas, or heavy industrial pollution areas.
- High mechanical stability, e.g. for seismic areas.
- Very reliable pressure release performance for applications with special protection requirements.
- Protect transmission and distribution lines, power stations, transformers, generators, capacitors,traction locomotives, cables and switch-gear.
The Mv Surge Arrester is constructed from high-quality materials, including stainless steel and high-grade copper, which ensures durability and reliability over time. Its circuitry is specially designed to absorb and dissipate voltage surges, minimizing the risk of electrical damage and protecting both personnel and equipment.
We have two types MV surge arresters, one is porcelain housing type, another is polymer housing type. You can custom them according to your requirement.
We also offer good quality MOV zno varistors to our customers from the world.
A corner of workshop:
